Specialized Pivot Bolt Kit

Brand:Specialized

Code:S184200067

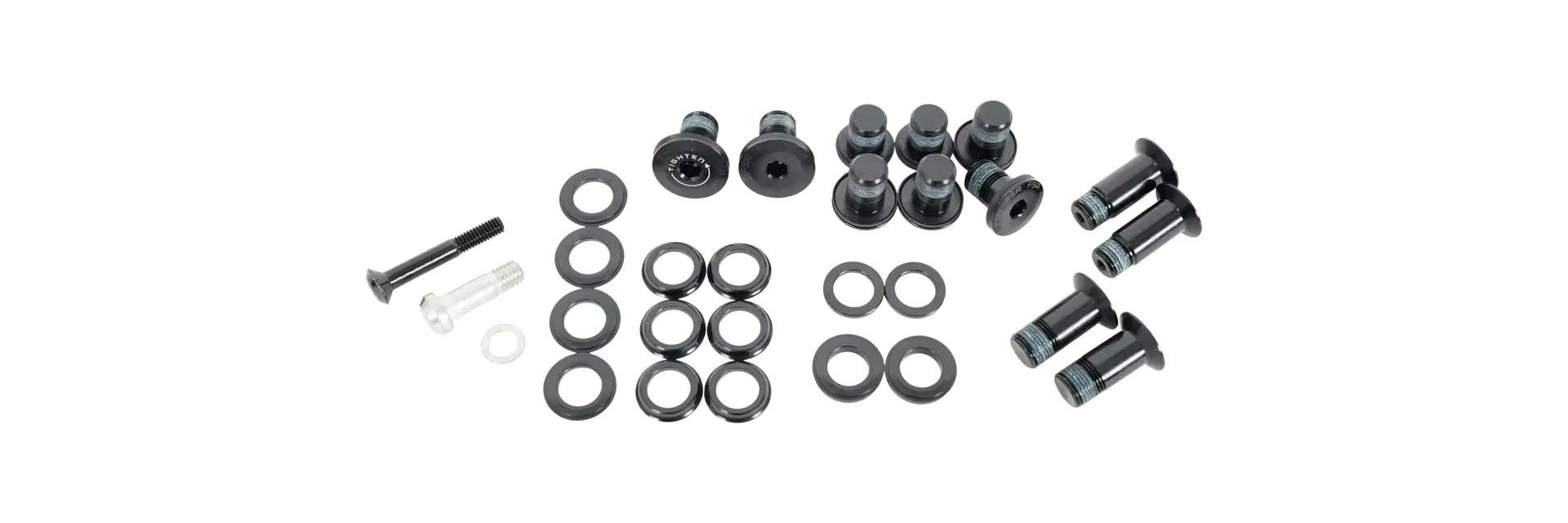

Suspension pivot bolt kit for 2018 - 2020 Stumpjumper Sidearm bikes including all bolts and spacers.
Main Pivot (Chainstay) Pivot Bolt: 12mm W x 17mm L - Alloy - Torque: 210 in-lbf (23.7
Nm) - 1 pcs.
Main Pivot (Chainstay) Pivot Bolt: Reverse thread - 12mm W x 17mm L - Alloy - Torque:
210 in-lbf (23.7 Nm) - 1 pcs.
Main Pivot (Chainstay) Pivot Spacer: 12.1mm ID x 19.5mm OD x 3mm W - Alloy - 2 pcs.
Seatstay Horst Link Pivot Bolt: 12mm W x 30mm L - Alloy - Torque: 180 in-lbf (20.3 Nm)
- 2 pcs.
Seatstay Horst Link Pivot Outer Spacer: 12mm ID x 21mm OD x 2.5mm W - Alloy - 4 pcs.
Seatstay Horst Link Pivot Inner Spacer: 12mm ID x 18mm OD x 2mm W - Alloy - 2 pcs.
Shock Link to Seat Tube Pivot Bolt: 12mm W x 17mm L - Alloy - Torque: 180 in-lbf (20.3
Nm) - 2 pcs.
Shock Link to Shock Extension Pivot Bolt: 12mm W x 14mm L - Alloy - Torque: 180 in-lbf
(20.3 Nm) - 2 pcs.
Shock Link to Shock Extension Pivot Bolt: 12mm W x 14mm L - Alloy - Torque: 180 in-lbf
(20.3 Nm) - 2 pcs.
Shock Link to Seatstay Pivot Bolt: 12mm W x 17mm L - Alloy - Torque: 180 in-lbf (20.3
Nm) - 2 pcs.

Where Used

2021LEVO SL COMP

2021LEVO SL COMP CARBON

2021LEVO SL EXPERT CARBON

2021LEVO SL SW CARBON

2021LEVO SL SW CARBON FRMSET

2020LEVO SL COMP

2020LEVO SL COMP CARBON

2020LEVO SL EXPERT CARBON

2020LEVO SL SW CARBON

2020LEVO SL SW CARBON FOUNDERS EDITION

2020SJ 29

2020SJ ALLOY EVO 27.5 FRM

2020SJ ALLOY EVO 29 FRM

2020SJ CARBON EVO 27.5 FRM

2020SJ CARBON EVO 29 FRM

2020SJ COMP ALLOY EVO 27.5

2020SJ COMP ALLOY EVO 29

2020SJ COMP CARBON EVO 27.5

2020SJ COMP CARBON EVO 29

2020SJ EXPERT CARBON 27.5

2020SJ EXPERT CARBON 29

2020SJ LTD CARBON EVO 27.5 FRM

2020SJ LTD CARBON EVO 29 FRM

2020SJ LTD CARBON PEMBERTON 27.5

2020SJ LTD CARBON PEMBERTON 29

2020SJ PRO CARBON EVO 27.5

2020SJ PRO CARBON EVO 29

2020SJ SW CARBON 27.5

2020SJ SW CARBON 27.5 FRM

2020SJ SW CARBON 29

2020SJ SW CARBON 29 FRM

2020SJ SW CARBON SRAM AXS 29

2019Men's Stumpjumper Comp Alloy 27.5 -12-speed

2019Men's Stumpjumper Comp Alloy 29

2019Men's Stumpjumper Comp Alloy 29 -12-speed

2019Men's Stumpjumper Comp Carbon 27.5

2019Men's Stumpjumper Comp Carbon 27.5—12-speed

2019Men's Stumpjumper Comp Carbon 29

2019Men's Stumpjumper Comp Carbon 29 -12-speed

2019Men's Stumpjumper EVO Comp Alloy 27.5

2019Men's Stumpjumper EVO Comp Alloy 29

2019Men's Stumpjumper EVO Pro 27.5

2019Men's Stumpjumper EVO Pro 29

2019Men's Stumpjumper Expert 27.5

2019Men's Stumpjumper Expert 29

2019Men's Stumpjumper Pro 29

2019Men's Stumpjumper ST 27.5

2019Men's Stumpjumper ST 29

2019Men's Stumpjumper ST Comp Alloy 29

2019Men's Stumpjumper ST Comp Carbon 27.5 -12-speed

2019Men's Stumpjumper ST Comp Carbon 29

2019Men's Stumpjumper ST Comp Carbon 29 -12-speed

2019Men's Stumpjumper ST Expert 27.5

2019S-Works Stumpjumper 27.5

2019S-Works Stumpjumper 29

2019S-Works Stumpjumper ST 27.5

2019S-Works Stumpjumper ST 29

2019SJ FSR MEN SJ FSR MEN SW CARBON 27.5 - WF

2019SJ FSR MEN SJ FSR MEN SW CARBON 29 - WF

2019SJ FSR MEN SW CARBON 27.5 FRM

2019SJ FSR MEN SW CARBON 29 FRM

2019Stumpjumper Custom 27.5

2019Stumpjumper Custom 29

2019Women's Stumpjumper Comp 27.5—12-speed

2019Women's Stumpjumper Comp Alloy 27.5

2019Women's Stumpjumper Comp Carbon 27.5

2019Women's Stumpjumper Comp Carbon 27.5—12-speed

2019Women's Stumpjumper Comp Carbon 27.5—Mixtape LTD

2019Women's Stumpjumper ST Alloy 27.5

2019Women's Stumpjumper ST Alloy 29

2019Women's Stumpjumper ST Comp Alloy 29

2019Women's Stumpjumper ST Comp Alloy 29 -12-speed

2019Women's Stumpjumper ST Comp Carbon 29

2019Women's Stumpjumper ST Comp Carbon 29 -12-speed

2018Men's S-Works Stumpjumper 27.5

2018Men's S-Works Stumpjumper 27.5 Frame

2018Men's S-Works Stumpjumper 29

2018Men's S-Works Stumpjumper 29 Frame

2018Men's S-Works Stumpjumper ST 27.5

2018Men's S-Works Stumpjumper ST 29

2018Men's Stumpjumper Comp Alloy 27.5

2018Men's Stumpjumper Comp Alloy 29

2018Men's Stumpjumper Comp Carbon 27.5

2018Men's Stumpjumper Comp Carbon 29

2018Men's Stumpjumper Expert 27.5

2018Men's Stumpjumper Expert 29

2018Men's Stumpjumper ST Alloy 27.5

2018Men's Stumpjumper ST Alloy 29

2018Men's Stumpjumper ST Comp Carbon 27.5

2018Men's Stumpjumper ST Comp Carbon 29

2018Men's Stumpjumper ST Expert 27.5

2018Men's Stumpjumper ST Expert 29

2018Women's Stumpjumper Comp Alloy 27.5

2018Women's Stumpjumper Comp Carbon 27.5

2018Women's Stumpjumper ST Alloy 27.5

2018Women's Stumpjumper ST Alloy 29

2018Women's Stumpjumper ST Comp Alloy 29

2018Women's Stumpjumper ST Comp Carbon 29
