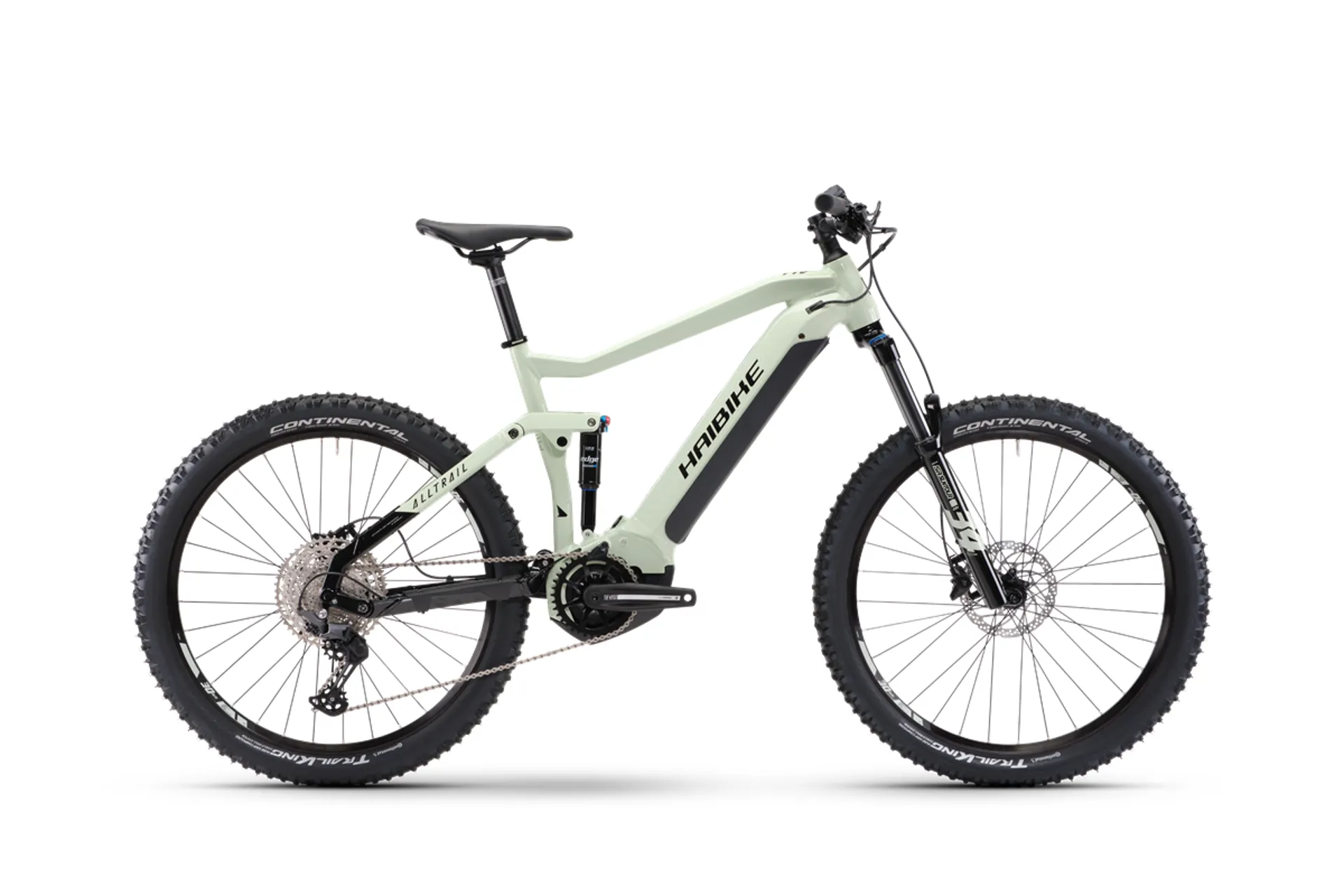

HaiBike AllTrail 4 27.5 48cm Honey

Season:2022

Brand:Haibike

Code:45006248

The 2022 AllTrail 4 27.5 not only looks good, but also cuts a fine figure in more demanding terrain. Uphill, the Yamaha PW-ST drive with integrated 630Wh battery supports you powerfully from the first step on the pedals. With the reliable brake and gear components from Shimano, you have your bike under control in every situation. A suspension travel of 140mm at the front and a full 150mm at the rear ensures sufficient comfort even on rougher descents.
Technical Information
  • ENGINE

    Yamaha, PW-ST System, 250 W, 70 Nm, 25 km/h

  • DISPLAY

    Yamaha, Side Switch, 1.7" LCD, 7 functions

  • BATTERY

    InTube, 630 Wh

  • FRAME FAMILY

    Haibike, FullSeven Yamaha i630, Aluminium 6061

  • FORK

    SR Suntour, XCR34 COIL LO, Steel spring, 140 mm travel, Aluminium steerer tube 1 1/8" - 1 1/2" tapered, 15 x 110mm thru-axle Boost

  • DAMPER

    SR Suntour, Edge LO-R8, Air, Trunnion Mount

  • CRANK ARM

    Haibike Components, The Crank +, Aluminium

  • BRAKE (FRONT)

    Shimano, MT410, Hydraulic disc brakes

  • BRAKE (REAR)

    Shimano, MT410, Hydraulic disc brakes

  • TUBE

    Presta valve

  • RIM

    Rodi, Tryp 30, With Eyelets, Double Wall, Aluminium

  • CLAMPING RING

    Internal hexagon, 34.9 mm

  • REAR DERAILLEUR

    Shimano, Deore M5100

  • SHIFT LEVER

    Shimano, Deore M5100, Trigger switch

  • BOTTOM BRACKET

    integrated in the motor

  • SPROCKET

    Shimano, M5100, 11 - 51 teeth

  • CHAIN

    KMC, X11e

  • CHAINRING

    Steel, 38 teeth

  • CHAIN GUIDE

    Nylon directmount

  • BRAKE LEVER

    Shimano, MT401, Aluminium

  • BRAKE DISC (FRONT)

    Shimano, RT30-M, 180 mm

  • BRAKE DISC (REAR)

    Shimano, RT30-M, 180 mm

  • TYRE

    Continental, Trail King, 65-584, 27.5 x 2.6 inch

  • FRONT WHEEL HUB

    Shimano, MT400-B, Centerlock

  • REAR WHEEL HUB

    Shimano, MT400-B, Centerlock

  • SPOKES

    Sapim, Leader

  • HANDLEBAR

    Haibike Components, TheBar ++, 780 mm

  • GRIPS

    Haibike, MTB grips

  • STEM

    Haibike Components, TheStem ++, A-head, 31.8 mm, 7.0 degrees

  • HEADSET

    Feimin, A-Head Tapered, Ball bearing

  • SADDLE

    Selle Bassano, Reko R2 E-Sport

  • SEAT POST

    Haibike Components, TheSeatpost ++, Aluminium, 31.6 mm

  • PEDALS

    Freeridepedal, Aluminium, with Reflector
